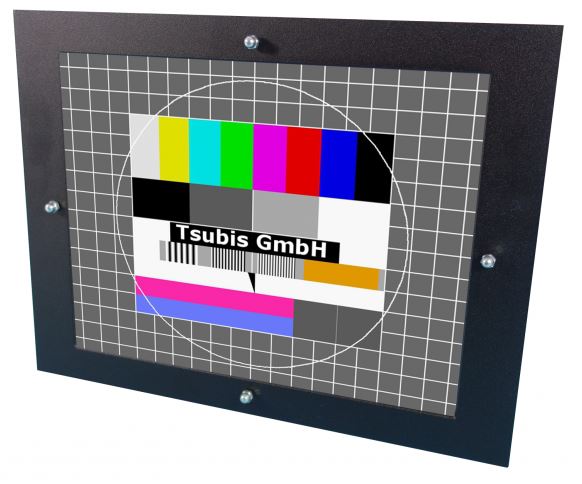

This 12.1″ TFT LCD monitor replaces the original 14″ CRT monitor that is fitted to the NUM 750 and NUM 760. The 12.1″ LCD gives the same viewing area as a 14″ CRT.
Our specially developed replacement monitors have been designed to give the same operation as the original CRT monitor, but with higher performance. The display is crisper and brighter making it much easier to read, and the lower power consumption reduces your running costs. It is mechanically and electrically compatible with the original CRT, and is supplied with all the relevant cables and connectors to ensure a fast, plug and play installation.
Details of our NUM 750 replacement monitor
- 12.1″ TFT LCD industrial monitor which replaces the 14″ CRT monitor used with NUM 750 and NUM 760.

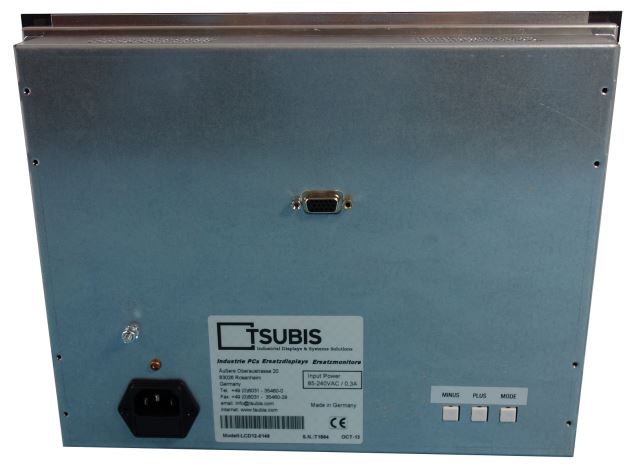

- Mounting: mounts via the supplied front panel
- Monitor Connection: 10 pin IDC video adpater cable provided
- Operating voltage: 85-240 VAC
- Display resolution: 800 x 600
- Brightness: 300 cd/m2
- CE Certified
- Designed for 24/7 continuous operation
- 2 year warranty
- Our Part Number: LCD12-0149
Original monitor: NUM 14″ CRT
Replacement monitor: 12.1″ TFT LCD monitor
Controller: NUM 750 NUM 760
