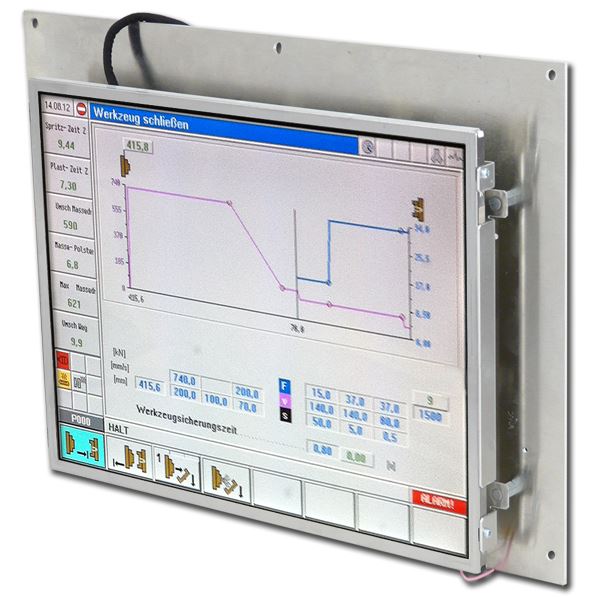

This 10.4″ TFT LCD monitor is a replacement for the original monitor that is fitted to the Krauss Maffei MC4.
It is a drop-in replacement that is fully compatible, both mechanically and electrically. Simply remove the old monitor and fit the new LCD monitor. There is no need for modifications. The video connection is made via a 15 pin D-sub connector. The monitor operates from a 12 VDC supply.
Specifications of our replacement Krauss Maffei MC4 monitor
New Display: 10.4″ TFT LCD colour, 800 x 600

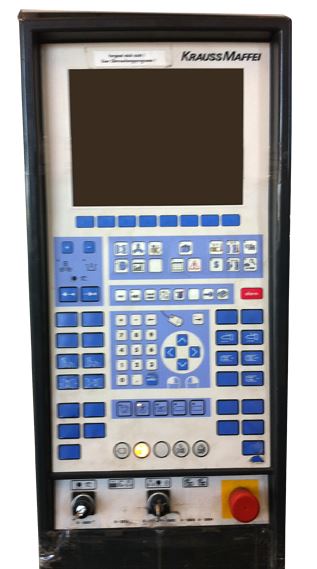

Compatible with: Krauss Maffei MC4

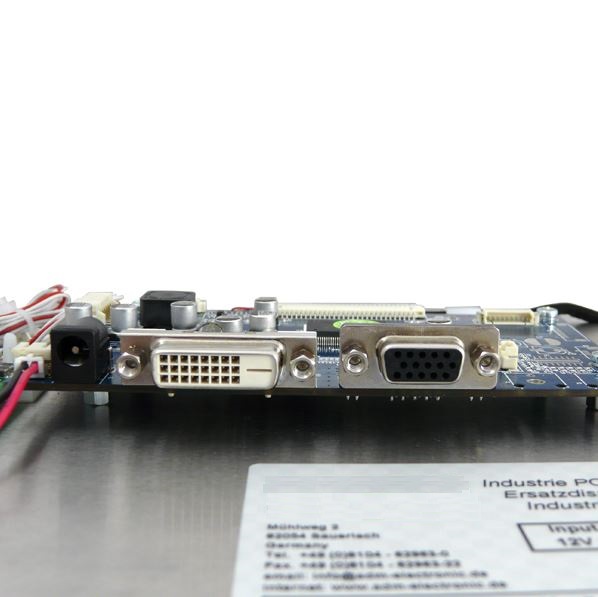

Connector: 15 pin Sub-D (2 rows)
Housing: fully compatible using the supplied mounting plate
Settings: via OSD (On Screen Display)
Power Supply: Operates from a 12 VDC supply
Manufacturing: Made in Germany. CE industry standard, EN55022, EN55024.
Warranty: 2 years
Our Part Number: LCD10-0127
|Request for LCD10-0127|
How To Order Your Replacement Monitor
Call us on +44 (0) 7711 289545 or Email.
We accept BACS payments and Credit/Debit cards.
