Hurco VMX-24

Contact Us For Our Latest Offers
Normally In Stock
Next Day Delivery Available
2 Year Warranty

Call us on +44 (0) 1258 470208 or Email.

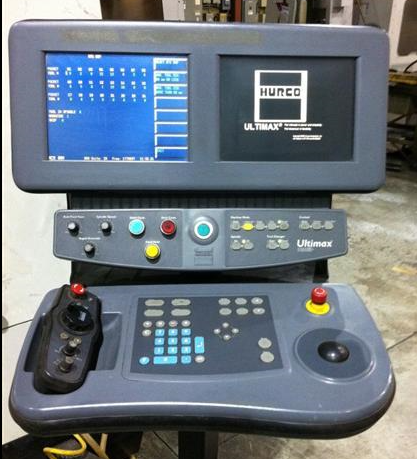

With the Hurco VMX-24 it is possible to interchange the two displays – meaning you can move the operator display to the graphics display position and vice-versa (unlike the Ultimax 3). It is also possible to operate it with one LCD and one CRT installed in either position, or dual LCDs.

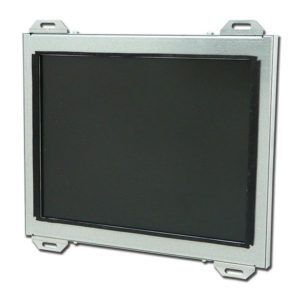

Our replacement Hurco Ultimax 4 monitor is a stand-alone unit, so it can be used to replace the CRT in either position. It is fully compatible, both mechanically and electrically, with the Hurco Ultimax 4 and Hurco Winmax, and the Hurco VMX-24, VMX-30, VMX-42, VTX U and DCX-32.

The monitor contains a single 12.1″ TFT LCD display housed in a metal casing to prevent electrical interference on the screen. Three connections are provided:

  • 10 pin connector for power
  • 15 pin D-type connector for the video
  • 9 pin D-type connector for the OSD (On Screen Display) board that we provide with the unit. This allows user adjustment of brightness, contrast, screen size, position, etc.


Technical specifications:

  • 12.1 “TFT monitor as replacement for 12” TFT monitors in the control Hurco Ultimax 4 and Hurco WinMax
  • Compatible with Hurco VMX-24, VMX-30, VMX-42, VTX U and DCX-32.
  • Mechanical design: fully compatible metal housing
  • Monitor Connector: 15 pin HD D-Sub
  • Delivery includes OSD board (On Screen Display)
  • Power supply: 12V DC (via 10-pin box headers.)
  • Display resolution: 800 x 600 pixels
  • Brightness: 450 cd / m2
  • Contrast: 600: 1
  • Backlight 50,000 hours of operation
  • Designed for 24/7 continuous operation
  • 2 year warranty
  • Our part number LCD12-0161
Request for LCD12-0161

How To Order Your Hurco VMX-24 Replacement Monitor

Call us on +44 (0) 7711 289545 or Email.

We accept BACS payments and Credit/Debit cards.
