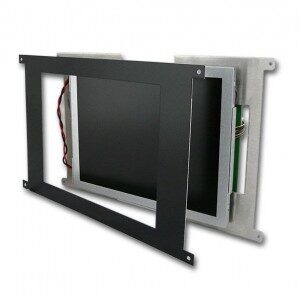

This specially developed 9″ industrial monitor replaces the old 8.9″ EL displays that are fitted to Engel injection molding machines. The original EL displays were used in KEBA panels and Engel EC88 EL, Engel EC100-A02, Engel RC90 and Engel RC100-A01 controllers.

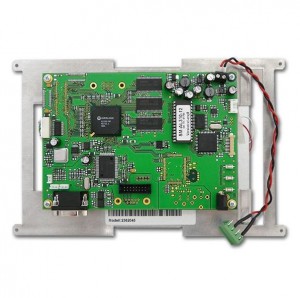

It is a drop-in replacement that is fully compatible, both mechanically and electrically. Simply remove the old monitor and fit the new LCD monitor. There is no need for modifications. The video connection is made via the supplied adapter cable (see photo). The 15 pin HD-Sub connector (3 rows of pins) connects to the new monitor, and the 10 pin header connector attaches to your machine controller. The monitor operates from a 12 VDC supply via the supplied power cable (see photo).
Technical details of our replacement Engel RC90 monitor
New Display: 10.4″ TFT LCD colour
Compatible with: Engel EC88 EL, Engel EC100-A02, Engel RC90 and Engel RC100-A01 controllers
Compatible to the following EL displays: Sharp LJ640U32, Sharp LJ640U34
Connector on monitor: 15 pin HD-Sub connector (3 rows of pins)
Connector for the controller: Multi-pin-connector (10 Pin)
Housing: fully compatible using the supplied mounting plate
Settings: via OSD (On Screen Display)
Operating Voltage: 12 VDC via the supplies power cable
Manufacturing: Made in Germany. CE industry standard, EN55022, EN55024.
Warranty: 2 years
Our Part Number: LCD84-0053
|Request for LCD84-0053|
How To Order Your Replacement Monitor
Call us on +44 (0) 7711 289545 or Email.
We accept BACS payments and Credit/Debit cards.
