This 12.1″ TFT LCD industrial monitor replaces the 12″ and 14″ CRT displays that are fitted to Engel injection molding machines using the Engel CC90 CC80 BUHL EC88 controllers.
It is a drop-in replacement that is fully compatible, both mechanically and electrically. Simply remove the old monitor and fit the new LCD monitor. There is no need for modifications. The video connection is made via a 9 pin D-sub connector, and it operates from a 85-240 volts AC power using a standard IEC (kettle-type) mains connector. A re-wirable IEC connector is supplied with the monitor.
Technical details of our replacement Engel CC90 CC80 BUHL EC88 monitor
New Display: 12.1″ TFT LCD colour
Compatible with: Engel CC90, Engel CC80, Engel BUHL and Engel EC88 controllers
Replaces the following displays: Philips BM 7502

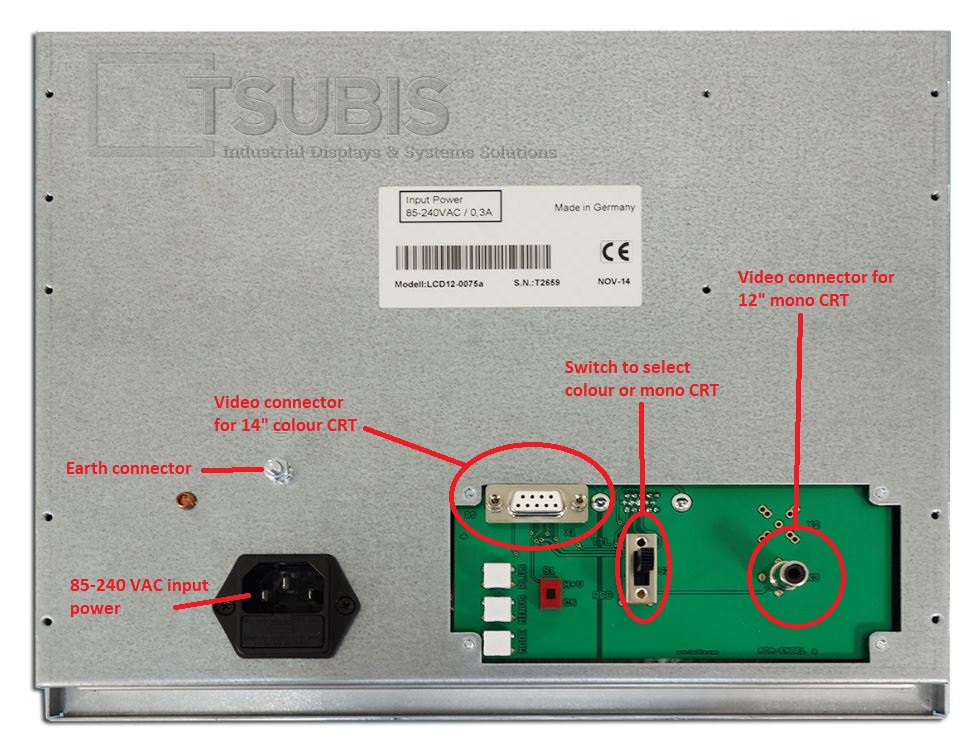

Connector on monitor: 9 pin D-Sub connector
Housing: fully compatible using twin front mounting plates (see datasheet)
Settings: via OSD (On Screen Display)
Operating Voltage: 85-240 VAC
Manufacturing: Made in Germany. CE industry standard, EN55022, EN55024.
Warranty: 2 years
Our Part Number: LCD12-0075
|Request for LCD12-0075|
How To Order Your Replacement Monitor
Call us on +44 (0) 7711 289545 or Email.
We accept BACS payments and Credit/Debit cards.
